| Business Type | Manufacturer, Supplier |
| Country of Origin | India |
| Advantages | High-reliability, High Abratsion-resietance, High Strength |
| Type | Drilling Rig Kelly Bar |
| Click to view more | |
Product Details
Application
Construction
Color
Available In Different Colors
Finishing
Color Coated
Material
Metal
Brand Name
IMT, MAIT, Bauer, XMG

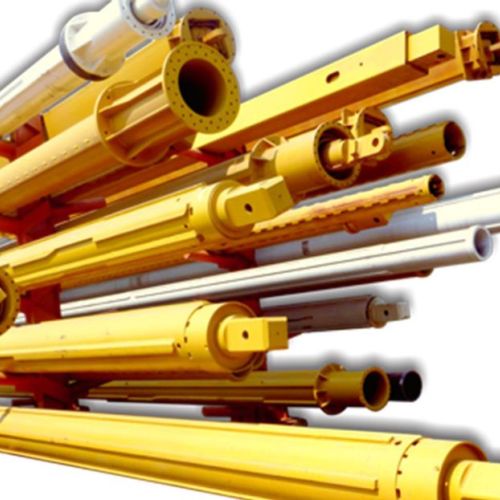

The features of Kamar Kelly Bar are as follows:
- 5 fold telescopic construction for a depth range from 15 - 100 m.
- Our kelly bar tubes imported from Mannesmann, Germany suppliers to OEM’s like Bauer, Casagrande, Mait, IMT etc.
- Special hot-treatment enhances the material’s strength more than 800Mpa, torque transfer capacity 120 - 480 kNm.
- All other material locks and wear-resistant drive rails imported from EUROPE . (accordingly with rotary sleeve).
- All the outer keys have undergone special heat treatment; therefore, they possess higher hardness, higher flexibility and excellent welding properties, which provide higher abrasion resistance to the keys.
- Robust Terminal joints, that are the terminal part of each telescopic pipe, provided to transfer torque and crowd force to the kelly bar.
- Designed according to advanced Modular-element principle with six ribs laid on tubes.
- The advantages of our Kelly bar, such as low weight, high strength, high abrasion-resistance, high-reliability are safeguarded by technologically.
- Bottom shock absorbers (spiral or discs type)
- Superior process, advanced machining equipment's and special fixtures.
- All Kelly bars are available in interlocking, friction and partially lockable.
- Version Length, Kelly stub and Kelly dimension can be on request.
- Complete model series and flexible design and manufacture ensure the ability to supply Kelly bar to match with any model of drilling rigs worked.
